Web Interface#

Experimental

The ARIEL web interface is experimental and under active development. Its API endpoints, frontend architecture, and configuration options may change in future releases.

ARIEL ships with a browser-based search interface that provides the same search capabilities as the CLI in a more approachable form. The interface is a FastAPI application serving a JavaScript single-page application (SPA). It connects to the same ARIELSearchService as the CLI and the logbook_search capability, so any search module or pipeline you register is automatically available in the UI.

Browser (SPA)                        Server (FastAPI)
┌──────────────────────┐             ┌──────────────────────────┐
│  index.html          │             │  create_app()            │
│  ├── js/app.js       │  REST API   │  ├── /api/capabilities   │
│  ├── js/search.js    │ ─────────── │  ├── /api/search         │
│  ├── js/entries.js   │             │  ├── /api/entries         │
│  ├── js/dashboard.js │             │  ├── /api/status          │
│  └── css/*.css       │             │  └── ARIELSearchService   │
└──────────────────────┘             └──────────────────────────┘

Views#

The interface has four views, accessible via the navigation bar. All views are rendered client-side using hash-based routing (#search, #browse, #create, #status).

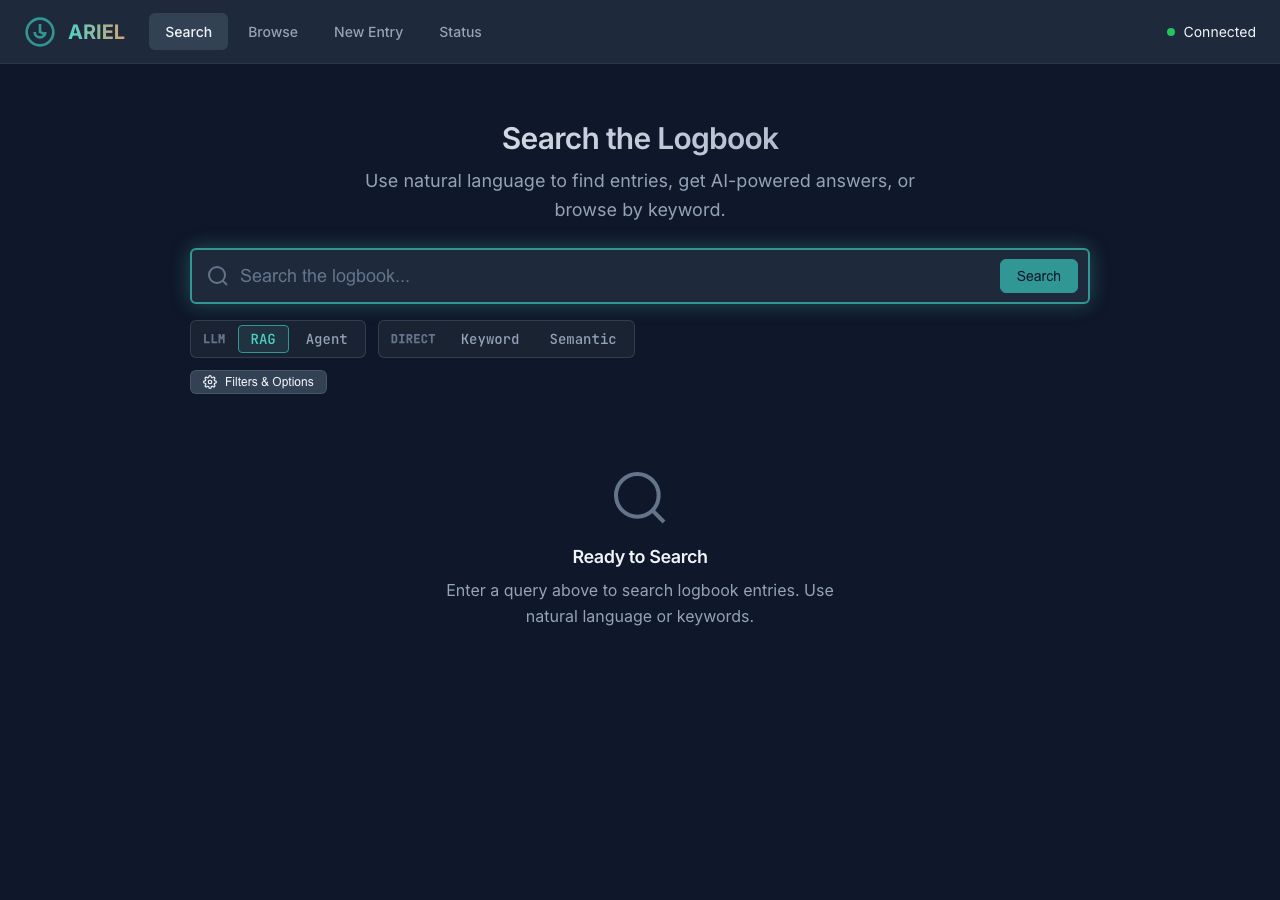

Search

The primary view. A search bar with mode tabs (Keyword, Semantic, RAG, Agent — only enabled modes are shown) and an expandable advanced options panel. Results display as entry cards with relevance scores and highlights. RAG and Agent modes show a generated answer above the entry list. Press Enter to submit a query; Ctrl+Enter submits with the current advanced options.

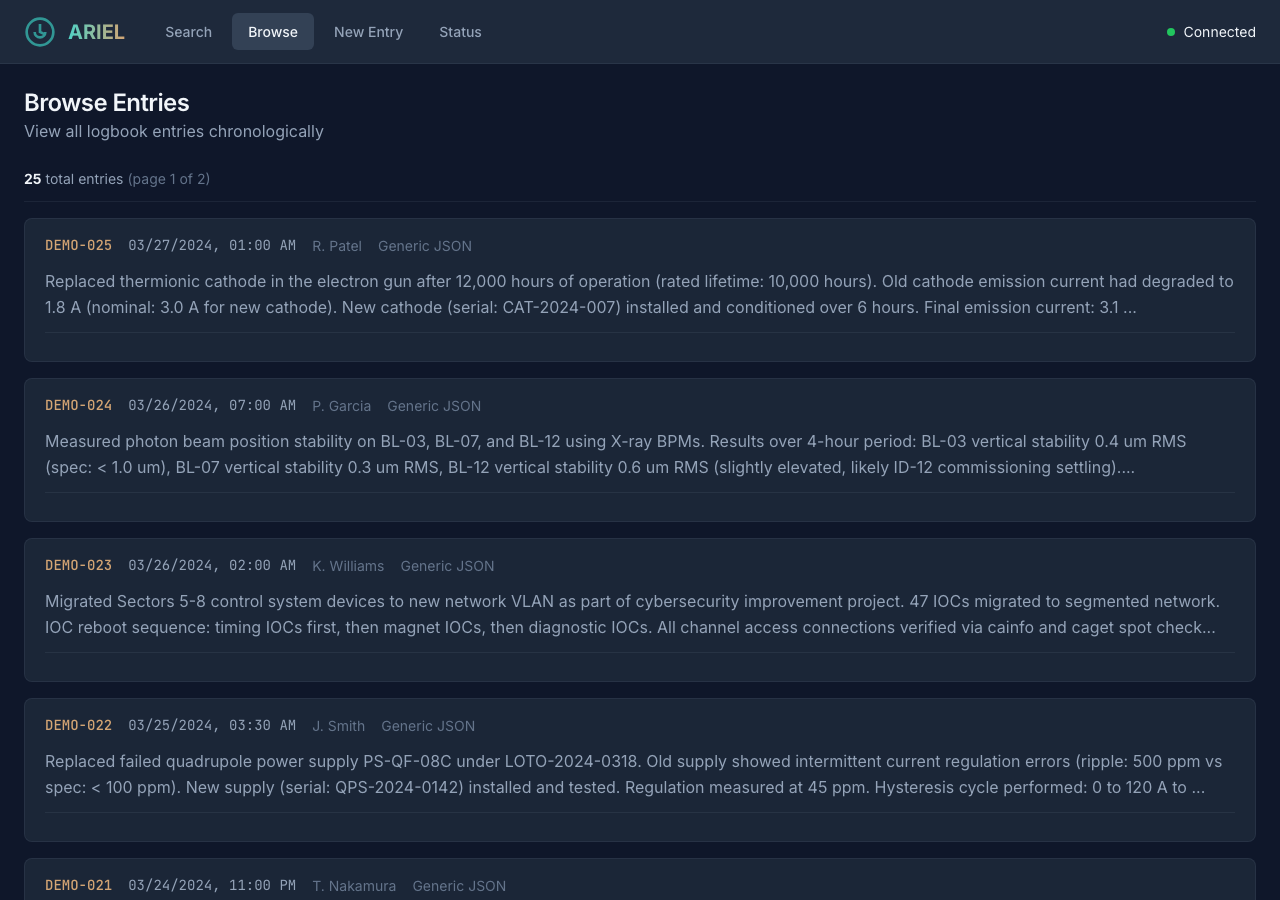

Browse

Paginated chronological listing of all logbook entries. Each entry shows its timestamp, author, and a text preview. Click an entry to view its full content. Filter by date range, author, or source system.

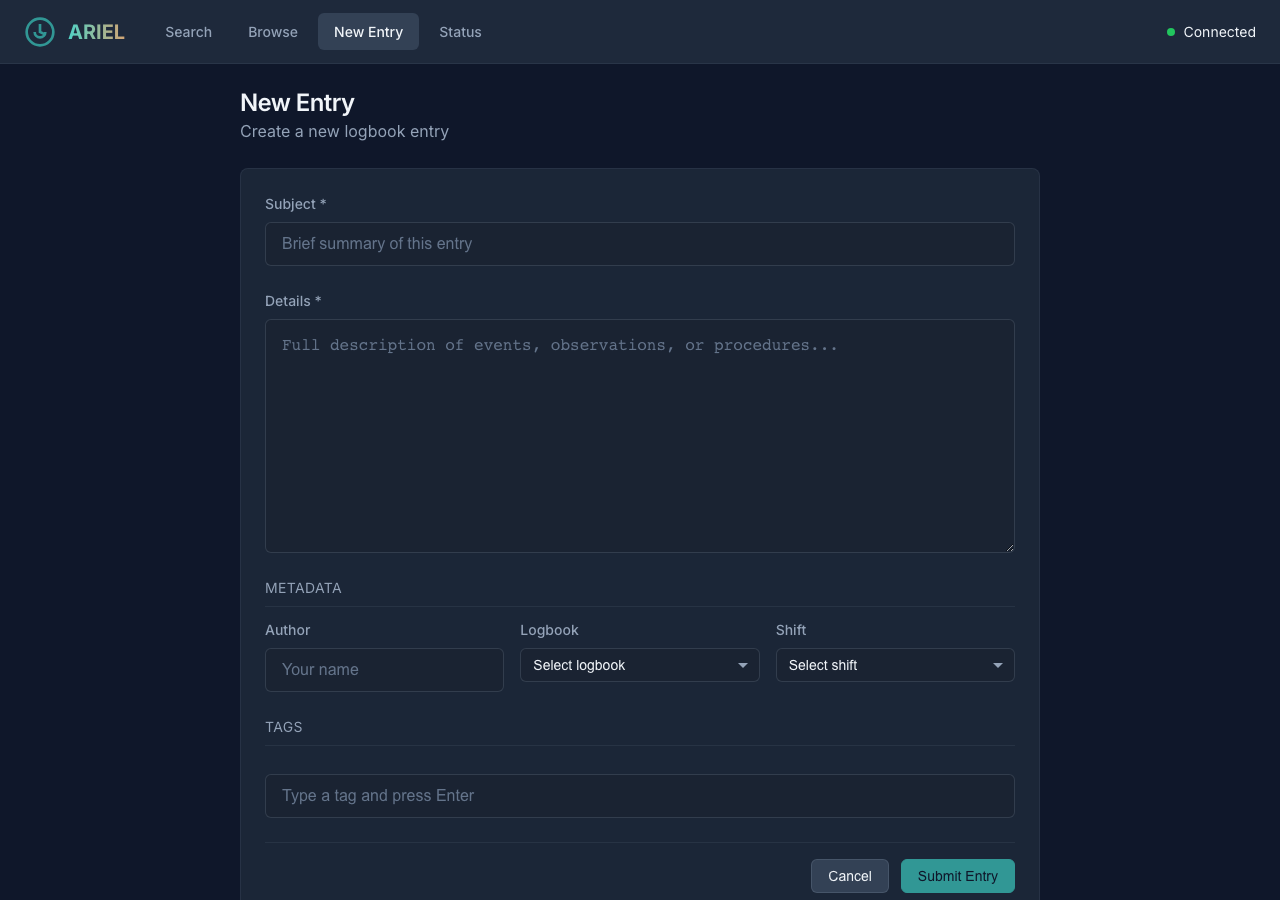

New Entry

Form for creating new logbook entries directly from the interface. Fields include subject, details, author, logbook, shift, and tags. New entries are stored with source_system: "ARIEL Web" and receive a generated entry_id in the format ariel-web-<uuid>. Created entries are searchable immediately.

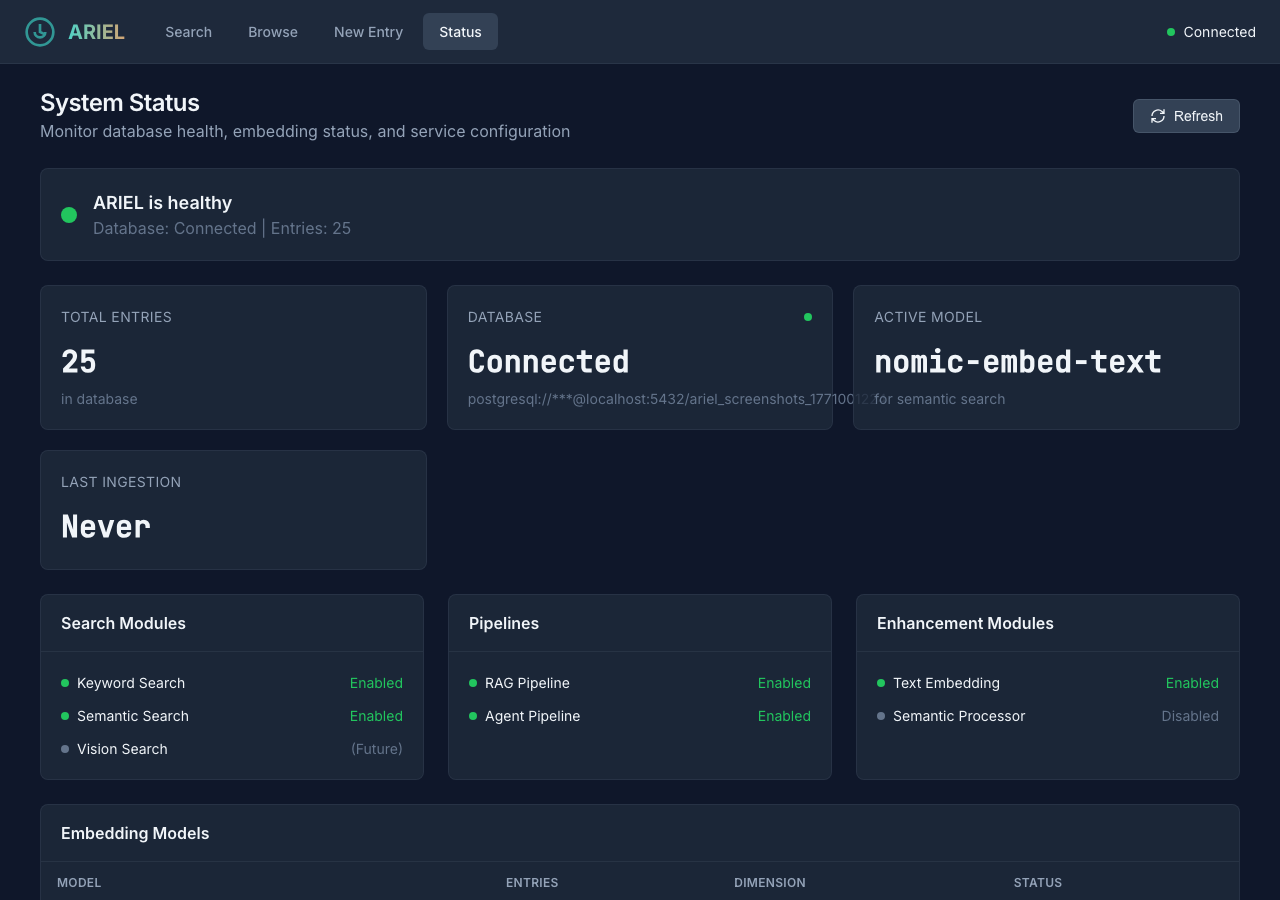

Status

Dashboard showing service health, database connection, entry count, embedding tables, enabled modules, and last ingestion timestamp. The dashboard polls /api/status on load, making it useful for verifying that the service is configured correctly after deployment.

Capabilities API#

The web interface discovers its search modes and tunable parameters dynamically at startup by calling GET /api/capabilities.

The “add a module, get a UI knob for free” pattern: When you register a custom search module with get_parameter_descriptors(), its parameters automatically appear in the web interface’s advanced options panel. The ParameterDescriptor dataclass supports types int, float, bool, text, date, select, and dynamic_select (which fetches options from an API endpoint). Parameters are grouped by section for visual organization.

Security & Resilience

XSS-safe highlights: Search result highlights from PostgreSQL ts_headline are sanitized by sanitizeHighlight() in components.js — only <b> and </b> tags are preserved; all other HTML is escaped.
CORS: The development server uses allow_origins=["*"]. Restrict this in production deployments.
Frontend fallback: If /api/capabilities is unavailable at startup, the frontend falls back to a default mode list so the interface remains usable.

Technical Reference

REST API

All endpoints are mounted under the /api prefix.

Method	Endpoint	Description
GET	`/api/capabilities`	Discover available search modes and parameters
GET	`/api/filter-options/{field}`	Get distinct values for a filterable field (`authors`, `source_systems`)
POST	`/api/search`	Execute a search query (body: `SearchRequest`)
GET	`/api/entries`	List entries with pagination and filtering
GET	`/api/entries/{entry_id}`	Get a single entry by ID
POST	`/api/entries`	Create a new logbook entry (body: `EntryCreateRequest`)
GET	`/api/status`	Service health, module status, and statistics

Additionally, a GET /health endpoint at the root level returns a simple health check response.

SearchResponse:

{
  "entries": [
    {
      "entry_id": "12345",
      "source_system": "ALS eLog",
      "timestamp": "2025-01-15T08:30:00Z",
      "author": "J. Smith",
      "raw_text": "RF cavity trip at 08:15...",
      "summary": "RF cavity fault requiring manual reset",
      "keywords": ["RF", "cavity", "trip"],
      "score": 0.92,
      "highlights": ["<b>RF cavity</b> trip at 08:15"]
    }
  ],
  "answer": "The RF cavity tripped at 08:15 due to...",
  "sources": ["12345"],
  "search_modes_used": ["keyword", "rag"],
  "total_results": 1,
  "execution_time_ms": 340
}

StatusResponse:

{
  "healthy": true,
  "database_connected": true,
  "database_uri": "postgresql://localhost:5432/ariel",
  "entry_count": 15230,
  "embedding_tables": [
    {"table_name": "embeddings_nomic_embed_text", "entry_count": 15230, "dimension": 768, "is_active": true}
  ],
  "active_embedding_model": "nomic-embed-text",
  "enabled_search_modules": ["keyword", "semantic"],
  "enabled_pipelines": ["rag", "agent"],
  "enabled_enhancement_modules": ["text_embedding", "semantic_processor"],
  "last_ingestion": "2025-01-15T06:00:00Z",
  "errors": []
}

See osprey.interfaces.ariel.api.schemas for the full Pydantic model definitions.

Capabilities

The /api/capabilities endpoint returns a JSON structure describing every enabled search module and pipeline, along with their parameters:

{
  "categories": {
    "direct": {
      "label": "Direct",
      "modes": [
        {
          "name": "keyword",
          "label": "Keyword",
          "description": "Full-text PostgreSQL search...",
          "parameters": [
            {
              "name": "fuzzy_fallback",
              "label": "Fuzzy Fallback",
              "param_type": "bool",
              "default": true,
              "section": "Search"
            }
          ]
        }
      ]
    },
    "llm": {
      "label": "LLM",
      "modes": [
        {
          "name": "rag",
          "label": "RAG Pipeline",
          "description": "Retrieve, fuse, and generate...",
          "parameters": []
        }
      ]
    }
  },
  "shared_parameters": [
    {"name": "max_results", "param_type": "int", "default": 10},
    {"name": "start_date", "param_type": "date"},
    {"name": "author", "param_type": "text"},
    {"name": "source_system", "param_type": "dynamic_select",
     "options_endpoint": "/api/filter-options/source_systems"}
  ]
}

How it works: The get_capabilities() function in osprey.services.ariel_search.capabilities iterates over enabled search modules and pipelines from the registry. Each module provides a get_tool_descriptor() (for its description) and optionally get_parameter_descriptors() (for its tunable parameters). Pipelines provide a get_pipeline_descriptor() with a category field ("direct" or "llm") that determines which tab group the mode appears in.

App Internals

App factory: The create_app() function in osprey.interfaces.ariel.app is a standard FastAPI app factory. It accepts an optional config_path argument and returns a fully configured FastAPI application with CORS middleware, API routes, and static file serving.

Lifespan management: The app uses FastAPI’s lifespan context manager to initialize the ARIELSearchService on startup and clean it up on shutdown. During initialization:

Registry bootstrap — pre-creates the framework registry singleton (without an application registry path) so that ARIEL’s search module and pipeline discovery works even when running outside a full Osprey application.
Config loading — searches for config.yml in four locations: the provided config_path, /app/config.yml (Docker mount), the CONFIG_FILE environment variable, and the current directory. Applies the ARIEL_DATABASE_HOST environment variable override for Docker networking.
Service creation — creates the ARIELSearchService from the loaded config and stores it in app.state.ariel_service.
Health check — validates the database connection and logs the result.

Docker environment overrides:

Variable	Description
`CONFIG_FILE`	Path to config.yml (alternative to default search)
`ARIEL_DATABASE_HOST`	Override database hostname in URI (e.g., `postgresql` for Docker compose networking)

Frontend

The frontend is a vanilla JavaScript SPA — no build tools, no framework, no transpilation. All files are served as static assets from src/osprey/interfaces/ariel/static/.

JavaScript modules:

Module	Responsibility
`app.js`	Application initialization, hash-based routing, health check polling
`api.js`	REST client wrapping `fetch()` for all API endpoints
`search.js`	Search form, mode tabs, results rendering
`advanced-options.js`	Capabilities-driven advanced options panel (dynamic parameter controls)
`entries.js`	Browse view with pagination, entry detail view, new entry form
`dashboard.js`	Status dashboard rendering
`components.js`	Shared UI components (entry cards, loading states, error messages)

CSS architecture:

File	Scope
`variables.css`	Design tokens (colors, spacing, typography, transitions)
`base.css`	Reset, typography, form elements
`components.css`	Cards, buttons, badges, modals, search results
`layout.css`	Header, navigation, main content, responsive grid

Routing: The app uses window.location.hash for navigation. The app.js module listens for hashchange events and shows/hides view sections (#search, #browse, #create, #status). No page reloads occur during navigation.

Running the Web Interface#

CLI mode (recommended for development):

osprey ariel web                      # http://localhost:8085
osprey ariel web --port 8080          # Custom port
osprey ariel web --host 0.0.0.0       # Bind to all interfaces
osprey ariel web --reload             # Auto-reload on code changes

Deployed service (via Osprey’s deploy system):

Add ariel_web to deployed_services in config.yml:

deployed_services:
  - postgresql
  - ariel_web

services:
  ariel_web:
    path: ./services/ariel-web
    port_host: 8085

Then start with osprey deploy up. The deployed container mounts config.yml at /app/config.yml and uses the ARIEL_DATABASE_HOST variable to resolve the database within the Docker network.

Programmatic usage:

from osprey.interfaces.ariel.app import create_app

app = create_app(config_path="config.yml")

# Use with uvicorn
import uvicorn
uvicorn.run(app, host="0.0.0.0", port=8085)

Collaboration Welcome

The web interface is a great place to contribute — whether that is a new view, improved accessibility, mobile-responsive layouts, or better error handling. If you build something useful, we encourage you to open a pull request so it becomes part of Osprey.
