Part 2: Building Your Channel Finder#

Step 3: Semantic Channel Finding Pipelines#

The Core Challenge: Bridging Human Language and Control System Addresses

Control systems at scientific facilities present a fundamental communication gap: operators and physicists think in terms of physical concepts (“beam current,” “terminal voltage,” “ion pump pressure”), while control systems use technical addresses (SR01C___DCCT1_AM00, TMVST, IP41Pressure). This gap becomes critical in large facilities with thousands to hundreds of thousands of channels—manually looking up addresses is impractical, and exact string matching fails because users don’t know the precise naming conventions.

Semantic channel finding solves this by using LLM-powered pipelines to translate natural language queries into specific control system addresses. Instead of requiring users to memorize technical names or browse through documentation, they can ask for what they need in their own words. The system understands the semantic meaning and finds the correct channels, even when query terminology doesn’t exactly match the database.

Why This Matters for Control Systems:

Accessibility: Non-experts can interact with complex systems without extensive training on naming conventions
Efficiency: Eliminates time spent searching documentation or asking colleagues for channel names
Reliability: Reduces errors from mistyped or misremembered addresses
Scalability: Makes systems with thousands of channels as easy to use as small systems
Integration: Enables natural language interfaces for automated procedures and diagnostics

Two Pipeline Implementations

This template provides two semantic channel finding implementations, each suited to different facility scales:

In-Context Search: Direct semantic matching—best for small to medium systems (few hundred channels)
Hierarchical Navigation: Structured navigation through system hierarchy—scales to large systems (thousands+ channels)

Both pipelines share the same interface and capabilities, differing only in their matching strategy. Choose based on your system size, or try both and benchmark which performs better for your facility.

Switching Between Pipelines

To switch pipelines, edit config.yml and change the pipeline_mode setting:

channel_finder:
  pipeline_mode: in_context  # or "hierarchical"

That’s it—no code changes required. The template includes complete implementations of both pipelines with example databases, CLI tools, and benchmark datasets. The tabs below detail each pipeline’s workflow, database format, and testing tools.

In-Context Pipeline

Concept: Put the entire channel database in the LLM context and ask it to find matches.

Best for: Small to medium systems (few hundred channels), facilities with flat channel lists, rapid prototyping when database structure is still evolving.

Pipeline Flow:

Query splitting
Semantic matching against full database
Validation/correction (iterative)

Channel Names vs Addresses: Optimizing LLM Token Matching

The Challenge: Control systems use cryptic addresses (TMVST, Acc_I, IP41Pressure), but users query with natural language (“terminal voltage setpoint”, “grading resistor current”). The LLM needs to bridge this gap during semantic matching.

The Solution: When building your channel database, you choose how to create the searchable channel names:

# Default: use raw addresses as channel names
python build_channel_database.py

# LLM-powered: generate descriptive channel names (recommended)
python build_channel_database.py --use-llm --config config.yml

How It Works:

Your database stores three fields, but the LLM only sees two during semantic matching:

The LLM sees only: channel + description (formatted as "ChannelName: Description")

Why Descriptive Names Dramatically Improve Matching:

When a user queries “terminal voltage setpoint”:

Default mode (TMVST): LLM matches on description alone → returns cryptic token TMVST
LLM-powered mode (TerminalVoltageSetPoint): LLM matches on both name and description → returns semantically aligned token TerminalVoltageSetPoint

The descriptive channel name reinforces the semantic signal from the description, creating stronger, more consistent matches. The channel name becomes a searchable index aligned with how users think and query.

What the ``–use-llm`` flag does:

Extracts semantic tokens from descriptions (location, device type, property)
Generates unique PascalCase names that align with description content
Preserves original addresses for control system connections

Example results:

Channel (shown to LLM, searchable)	Address (for EPICS/LabView/etc.)
`TerminalVoltageSetPoint`	`TMVST`
`AcceleratingTubeEndIonPumpPressure`	`IP41Pressure`

Note: You can manually edit channel names in the database JSON file at any time to customize them for your facility’s terminology and conventions.

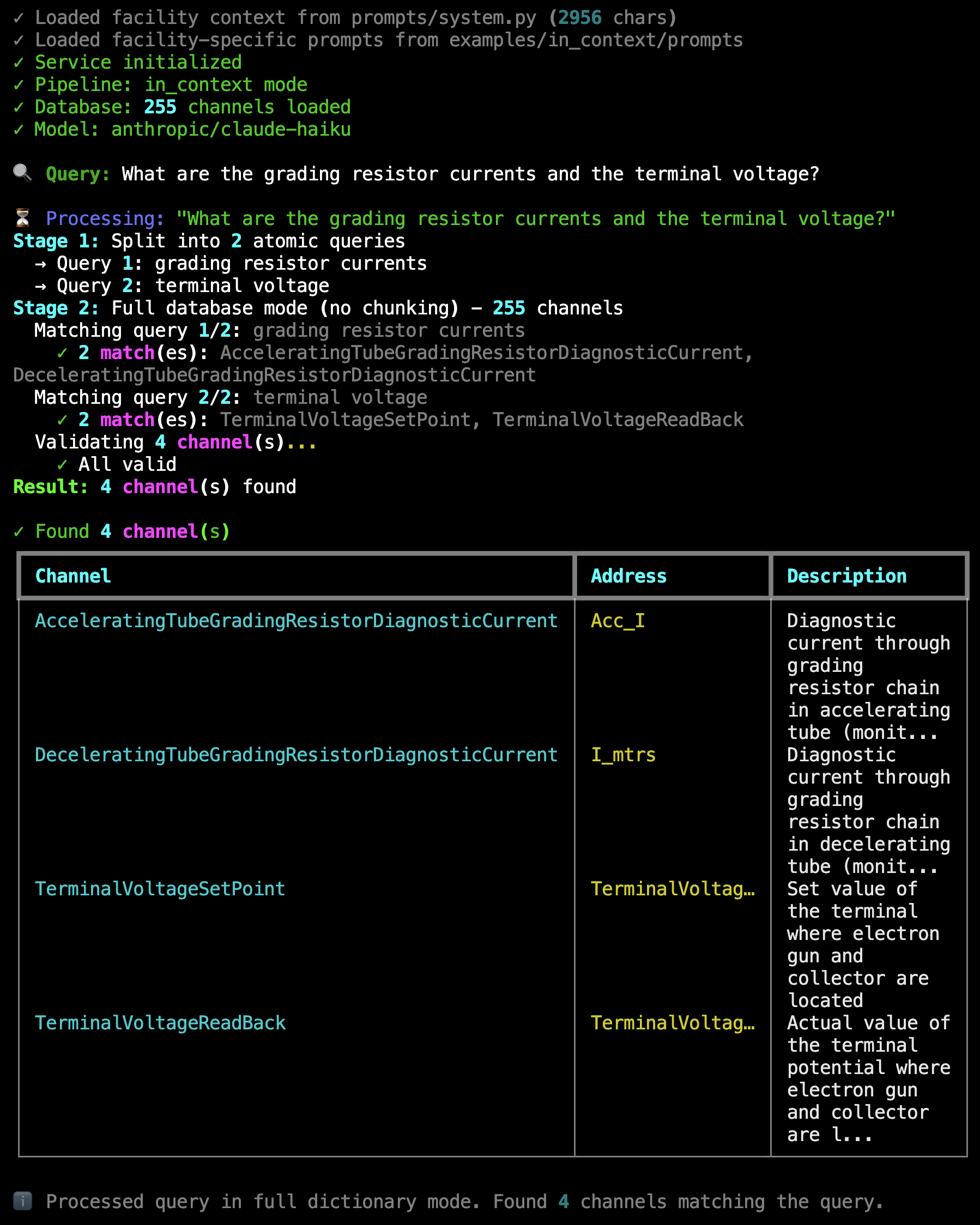

In-Context Channel Finder CLI in action — **Live Example**: In-context pipeline processing “What are the grading resistor currents and the terminal voltage?” — Shows query splitting into 2 atomic queries, full database mode with 255 channels, matching 4 results (2 grading resistor currents + 2 terminal voltages), and validation confirming all channels are valid.#

How It Works:

Pipeline Stages

The in-context pipeline uses a three-stage process to translate natural language into channel addresses.

Stage 1: Query Splitting

Complex queries are broken into atomic sub-queries to improve matching accuracy. For example, “grading resistor currents and terminal voltage” becomes two separate searches.

The LLM analyzes the query structure and identifies distinct intents. Single-intent queries pass through unchanged, while multi-intent queries are split for independent processing.

Stage 2: Semantic Matching

Each atomic query is matched against the channel database using semantic similarity. The pipeline operates in two modes:

Full database mode (default, recommended for <200 channels): The entire database is presented to the LLM in a single context window. Fast and simple, but limited by model context size. Controlled by chunk_dictionary: false in config.yml.
Chunked mode (for larger databases): The database is split into manageable chunks (default 50 channels per chunk, configurable via chunk_size in config.yml), and each chunk is searched independently. Prevents context overflow but may miss cross-chunk relationships. Enable with chunk_dictionary: true.

The LLM receives the formatted database and atomic query, then identifies all matching channels based on semantic meaning rather than exact string matching. This allows queries like “beam current” to match channels with descriptions containing corresponding concepts.

Stage 3: Validation & Correction

All matched channels are validated against the database to ensure they actually exist. This catches hallucinations or malformed channel names.

If invalid channels are detected, the pipeline enters a correction loop (maximum 2 iterations):

The LLM is presented with the validation results (which channels are valid/invalid)
It re-examines the database chunk with the original query
It either corrects the invalid channels or removes them
The corrected channels are re-validated

Only validated channels appear in the final result. This ensures the assistant never provides non-existent channel addresses to users or downstream capabilities.

Database Format

Simple Flat Structure - Plug and Play:

The in-context database uses a flat list where every channel has rich natural language descriptions for semantic matching:

{
  "channels": [
    {
      "template": false,
      "channel": "TerminalVoltageReadBack",
      "address": "TerminalVoltageReadBack",
      "description": "Actual value of the terminal potential where electron gun and collector are located measured capacitively"
    },
    {
      "template": false,
      "channel": "AcceleratingTubeGradingResistorDiagnosticCurrent",
      "address": "Acc_I",
      "description": "Diagnostic current through grading resistor chain in accelerating tube"
    },
    {
      "template": true,
      "base_name": "BPM",
      "instances": [1, 10],
      "sub_channels": ["XPosition", "YPosition"],
      "address_pattern": "BPM{instance:02d}{suffix}",
      "description": "Beam Position Monitors measure electron beam location",
      "channel_descriptions": {
        "XPosition": "Horizontal position from BPM {instance:02d} in millimeters",
        "YPosition": "Vertical position from BPM {instance:02d} in millimeters"
      }
    }
  ]
}

Key features:

Flat structure: All channels at the same level, no nested hierarchy
Rich descriptions: Natural language descriptions enable semantic matching
Template support: Device families (like BPM01-BPM10) defined once and expanded automatically
Separate naming: channel (searchable name shown to LLM) vs. address (actual PV address, not shown to LLM)
LLM sees: Only channel + description during semantic matching

Minimal setup: Just list your channels with descriptions. The pipeline handles the rest.

Build Your Database

From CSV to Template Database

The in-context pipeline provides tools to build template-based databases from simple CSV files. This workflow streamlines database creation, especially for facilities with device families.

Workflow Overview:

CSV File              →  build_channel_database.py  →  Template JSON Database
(raw data)               (with optional LLM naming)     (optimized format)
                                 ↓
                         validate_database.py
                         preview_database.py
                         (verify structure & presentation)

Step 1: Prepare Your CSV File

For CSV format reference, see data/raw/CSV_EXAMPLE.csv which includes inline documentation of all supported patterns. The template also includes data/raw/address_list.csv with real UCSB FEL channel data (53 standalone channels + 5 device families = 255 total expanded channels).

Create a CSV with your channel data (typically in src/my_control_assistant/data/raw/) in this format:

address,description,family_name,instances,sub_channel
TerminalVoltageReadBack,Actual value of terminal potential measured capacitively,,,
Acc_I,Diagnostic current through grading resistor chain in accelerating tube (monitors voltage distribution health),,,
DipoleMagnet{instance:02d}{sub_channel},Dipole magnets for beam bending - set point for magnet {instance},DipoleMagnet,9,SetPoint
DipoleMagnet{instance:02d}{sub_channel},Dipole magnets for beam bending - readback for magnet {instance},DipoleMagnet,9,ReadBack
SteeringCoil{instance:02d}{sub_channel},Steering coils for trajectory corrections - X direction setpoint,SteeringCoil,19,XSetPoint
SteeringCoil{instance:02d}{sub_channel},Steering coils for trajectory corrections - X direction readback,SteeringCoil,19,XReadBack

Column Definitions:

address: The actual PV address or pattern (required)
description: Natural language description for semantic matching (required)
family_name: Device family identifier for template grouping (optional)
instances: Number of device instances in the family (optional, for templates)
sub_channel: Sub-channel type (e.g., SetPoint, ReadBack) (optional, for templates)

Template Detection Logic:

Rows with family_name: Grouped into template entries (efficient for device families)
Rows without family_name: Standalone channel entries (one-off channels)

Step 2: Run the Database Builder

The builder tool processes your CSV and generates an optimized template-based database:

cd my-control-assistant

# Basic build (uses addresses as channel names)
python src/my_control_assistant/data/tools/build_channel_database.py

# With LLM-generated descriptive names (recommended)
python src/my_control_assistant/data/tools/build_channel_database.py --use-llm --config config.yml

The template includes working UCSB FEL accelerator data by default:

Format Reference: data/raw/CSV_EXAMPLE.csv (documented examples of all patterns)
Working Example: data/raw/address_list.csv (real UCSB FEL channels)
Default Output: data/channel_databases/in_context.json (pre-built database)

For your facility’s data, specify custom paths:

python src/my_control_assistant/data/tools/build_channel_database.py \
   --csv data/raw/your_address_list.csv \
   --output data/channel_databases/your_database.json \
   --use-llm --config config.yml

What the Builder Does:

Loads CSV: Reads your channel data, skipping comments and empty rows
Groups by Family: Identifies device families from family_name column
Extracts Common Descriptions: Automatically finds common description parts for template families
Creates Templates: Builds template-based entries with instance ranges
Generates Names (with --use-llm): Creates descriptive PascalCase names for standalone channels
Resolves Duplicates: Ensures all generated names are unique with location specificity
Adds Metadata: Includes generation date, stats, and tool provenance

LLM Name Generation Example:

The database stores three fields per channel, but the in-context pipeline only presents channel and description to the LLM during semantic matching. The address is preserved for control system connections but never shown to the LLM.

Without LLM (uses raw addresses):

{
  "channel": "Acc_I",
  "address": "Acc_I",
  "description": "Diagnostic current through grading resistor chain in accelerating tube"
}

LLM sees: "Acc_I: Diagnostic current through grading resistor chain in accelerating tube"

With LLM (descriptive, searchable names):

{
  "channel": "AcceleratingTubeGradingResistorDiagnosticCurrent",
  "address": "Acc_I",
  "description": "Diagnostic current through grading resistor chain in accelerating tube"
}

LLM sees: "AcceleratingTubeGradingResistorDiagnosticCurrent: Diagnostic current through grading resistor chain in accelerating tube"

The LLM uses facility-specific prompts to generate names that:

Use PascalCase format for consistency
Include location/position details (e.g., “AcceleratingTube”, “Top”, “Beginning”)
Use full words instead of abbreviations (e.g., “SetPoint” not “Set”)
Are unique across the entire database
Are self-documenting and semantic

Output Structure:

The builder creates a template-based JSON database with metadata:

{
  "_metadata": {
    "generated_from": "data/raw/address_list.csv",
    "generation_date": "2025-11-08",
    "generator": "build_channel_database.py",
    "llm_naming": {
      "enabled": true,
      "model": "anthropic/claude-haiku",
      "purpose": "Generated descriptive PascalCase names for 53 standalone channels"
    },
    "stats": {
      "template_entries": 5,
      "standalone_entries": 53,
      "total_entries": 58
    }
  },
  "channels": [
    { "template": false, "channel": "TerminalVoltageReadBack", ... },
    { "template": true, "base_name": "DipoleMagnet", "instances": [1, 9], ... }
  ]
}

Step 3: Validate Your Database

Check for structural issues and verify the database can be loaded:

# From my-control-assistant directory
python src/my_control_assistant/data/tools/validate_database.py

# Validate specific file
python src/my_control_assistant/data/tools/validate_database.py --database path/to/database.json

# Show detailed statistics
python src/my_control_assistant/data/tools/validate_database.py --verbose

Validation Checks:

Structure: Valid JSON format, correct schema, required fields
Templates: Instance ranges [start, end], sub-channels, patterns
Standalone: All required fields (channel, address, description)
Database Loading: Can be loaded by TemplateChannelDatabase class
Statistics: Channel counts, compression ratio, entry types

Step 4: Preview Database Presentation

See exactly how the database will appear to the LLM:

# From my-control-assistant directory
python src/my_control_assistant/data/tools/preview_database.py

# Show all channels (not just first 20)
python src/my_control_assistant/data/tools/preview_database.py --full

This prints the database presentation directly to your terminal, showing:

Database configuration and statistics
First 20 channels in LLM presentation format (or all with --full)
Template and standalone entry breakdown

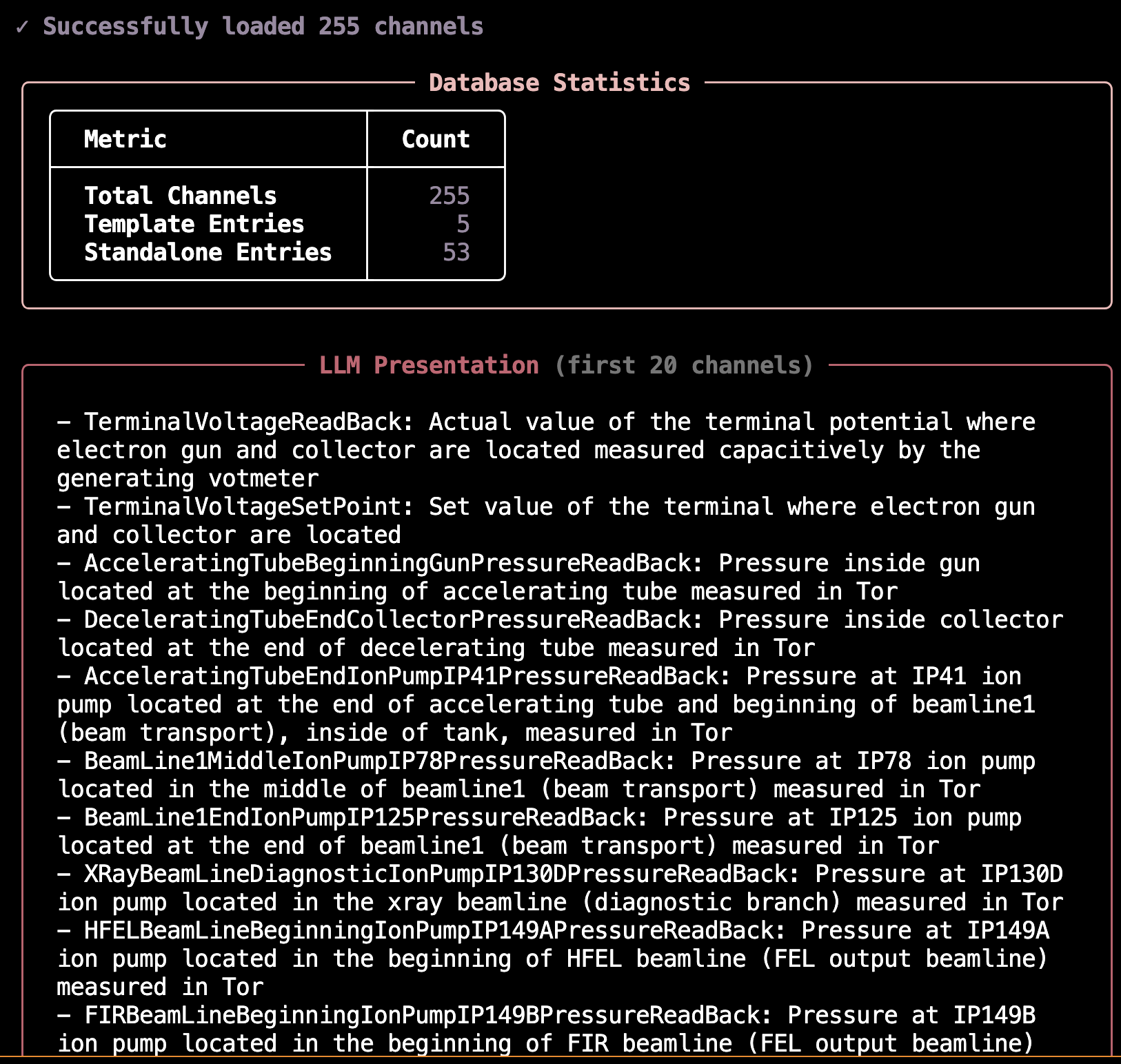

Preview Output Example:

Configuration:

The build tool uses command-line arguments to specify input/output paths. The LLM configuration for name generation can optionally be added to your config.yml:

channel_finder:
  # LLM configuration for name generation (optional)
  channel_name_generation:
    llm_batch_size: 10
    llm_model:
      provider: cborg
      model_id: anthropic/claude-haiku
      max_tokens: 2000

The database path is configured in the pipeline settings:

channel_finder:
  pipeline_mode: in_context  # Active pipeline: "in_context" or "hierarchical"

  pipelines:
    in_context:
      database:
        type: template
        path: src/my_control_assistant/data/channel_databases/in_context.json
        presentation_mode: template

Tool Locations:

All tools are in src/my_control_assistant/data/tools/ and should be run from the my-control-assistant directory (for config.yml access):

build_channel_database.py: Main builder (Workflow A: CSV → JSON)
validate_database.py: Schema and loading validation
preview_database.py: LLM presentation preview
llm_channel_namer.py: LLM-based name generation library
README.md: Comprehensive tool documentation

Alternative: Manual JSON Creation (Workflow B)

For complete control, you can create the JSON database manually:

Create JSON file directly with template and standalone entries
Run validate_database.py to check correctness
Update config.yml with new database path
Proceed to testing (next tab)

Both workflows are supported and documented in the tools README.

Test Your Database

Interactive Testing & Benchmarking

Once your database is built and validated, test its functionality with the CLI for rapid iteration, then benchmark it for statistical evaluation.

Interactive CLI: Rapid Development Testing

Query your database interactively without running the full agent:

# From my-control-assistant directory
python src/my_control_assistant/services/channel_finder/cli.py

This launches an interactive terminal where you can:

Test queries against your channel database in real-time
Watch the pipeline stages execute with live progress updates
Verify which channels are matched and why
Measure query execution time to optimize performance
Iterate on your database and see results immediately

Example queries to try:

“What’s the terminal voltage?”
“Show me all dipole magnets”
“Find steering coil setpoints”

The CLI operates independently of the agent framework, making it ideal for rapid development cycles. You can quickly iterate on your channel descriptions and immediately test the results.

Benchmarking: Critical Validation Before Production

Benchmark datasets are essential for validating your channel finder before deployment. A benchmark that performs well during development with developer-created queries may completely fail in production when users with different mental models start querying the system.

Once your database is ready and you have a diverse benchmark dataset from domain experts, run systematic benchmarks to measure accuracy:

# Run all benchmark queries
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py

# Test specific queries (useful during development)
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py --queries 0,1

# Compare model performance
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py --model anthropic/claude-sonnet

Benchmark Capabilities:

Statistical metrics: Precision (accuracy of matches), recall (completeness), and F1 scores (harmonic mean)
Success categorization: Perfect matches (100% correct), partial matches (some correct), and failures
Parallel execution: Runs 5 queries concurrently by default to speed up large benchmark sets
Incremental saves: Results are saved after each query, so interruptions don’t lose progress
Consistency tracking: Measures whether repeated queries produce the same results

Example benchmark results:

╭───────────────────── Overall Metrics ─────────────────────╮
│   Queries Evaluated    30/30                               │
│   Precision            0.949                               │
│   Recall               0.950                               │
│   F1 Score             0.943                               │
╰────────────────────────────────────────────────────────────╯

╭───────────────────── Success Breakdown ────────────────────╮
│   ✓ Perfect Matches    27    90.0%                         │
│   ⚠ Partial Matches     2    6.7%                          │
│   ✗ No Matches          1    3.3%                          │
╰────────────────────────────────────────────────────────────╯

╭──────────────────────── Performance ───────────────────────╮
│   Avg Consistency    1.000                                 │
│   Avg Time/Query     2.343s                                │
╰────────────────────────────────────────────────────────────╯

Configuring Benchmarks:

The benchmark system is configured in config.yml with both global settings and pipeline-specific datasets:

channel_finder:
  # Active pipeline determines which benchmark dataset is used by default
  pipeline_mode: in_context

  pipelines:
    in_context:
      database:
        type: template
        path: src/my_control_assistant/data/channel_databases/in_context.json
        presentation_mode: template

      processing:
        chunk_dictionary: false
        chunk_size: 50
        max_correction_iterations: 2

   # Benchmark dataset for this pipeline
   benchmark:
     dataset_path: src/my_control_assistant/data/benchmarks/datasets/in_context_main.json
     # In-context pipeline benchmark using UCSB FEL channels (30 queries)

# Global benchmarking configuration
benchmark:
  # Execution settings
  execution:
    runs_per_query: 1                 # Number of times to run each query
    delay_between_runs: 0             # Delay in seconds between runs
    continue_on_error: true           # Continue even if some queries fail
    max_concurrent_queries: 5         # Maximum parallel queries
    query_selection: all              # "all" or specific queries like [0,1,2]

  # Output settings
  output:
    results_dir: src/my_control_assistant/data/benchmarks/results
    save_incremental: true            # Save results after each query
    include_detailed_metrics: true    # Include detailed timing/cost metrics

  # Evaluation thresholds
  evaluation:
    exact_match_weight: 1.0
    partial_match_weight: 0.5

You can override the dataset and other settings via CLI:

# Use a different dataset
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py \
   --dataset src/my_control_assistant/data/benchmarks/datasets/custom_dataset.json

# Run specific queries
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py --queries 0,1,5,10

# Show detailed logs
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py --verbose

When to use these tools:

During development: Use the CLI to rapidly test queries as you build your database
Before deployment: Run full benchmarks with domain expert queries to validate accuracy meets production requirements (aim for >90% F1 score)
Model selection: Compare different LLM models to balance cost, speed, and accuracy for your specific use case
Continuous validation: Re-run benchmarks after database updates to ensure no regression in accuracy

Best Practices:

Rich Descriptions: Write detailed, semantic descriptions for better LLM matching
Consistent Naming: Use consistent patterns within device families
Family Grouping: Group related channels into templates for efficiency
LLM Naming: Use --use-llm for standalone channels to get searchable names
Validate Early: Run validation after building to catch structural issues
Preview Before Testing: Check LLM presentation to ensure clarity
Iterate with CLI: Test queries interactively before running full benchmarks
Benchmark Systematically: Run full benchmark suite before production deployment

Hierarchical Pipeline

Concept: Navigate through a structured hierarchy of systems → families → devices → fields.

Best for: Large systems (thousands+ channels), facilities with well-defined hierarchical organization, systems where context window size becomes a constraint.

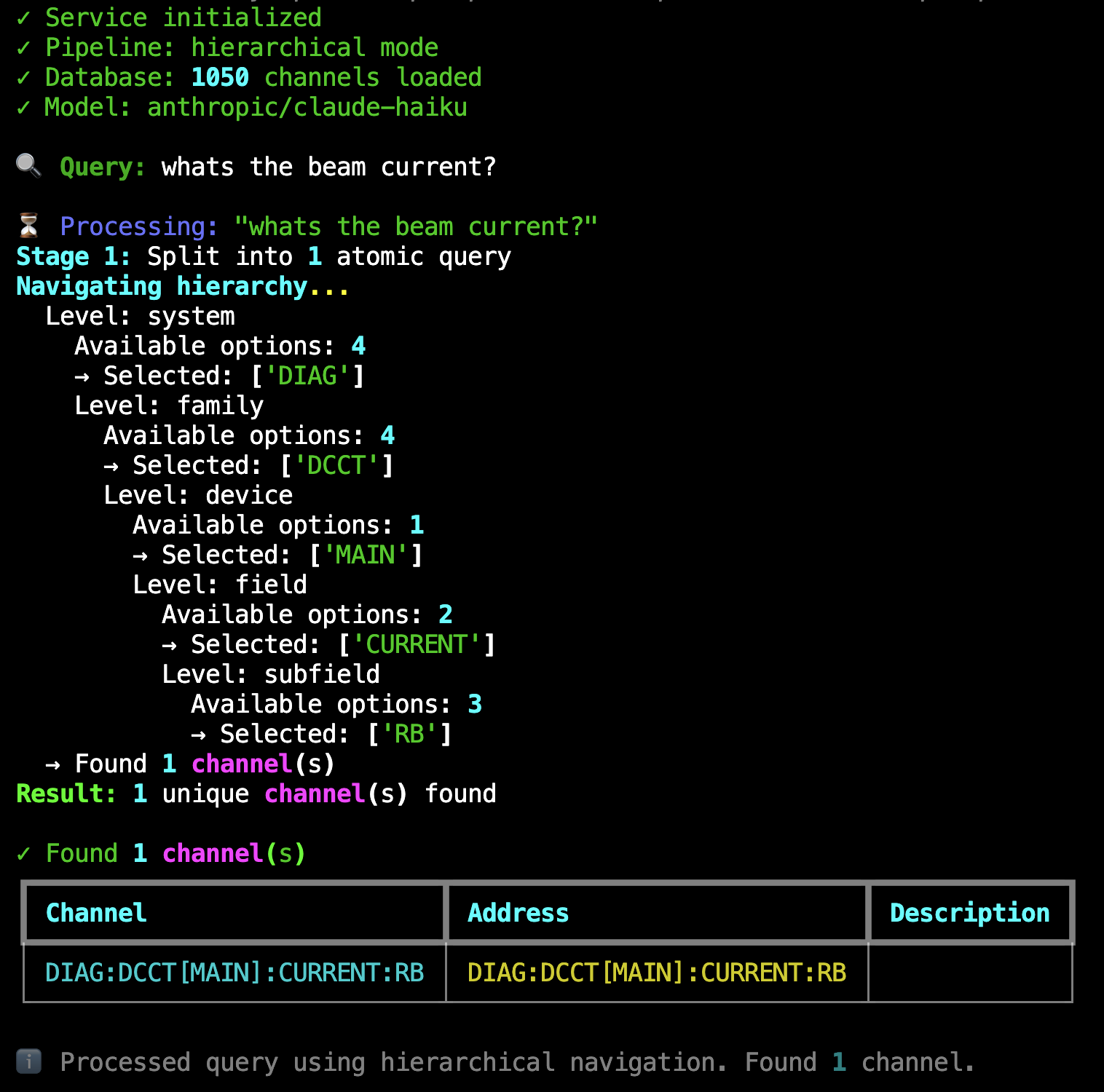

Hierarchical Channel Finder CLI in action — **Live Example**: Hierarchical pipeline processing “whats the beam current?” through 5 navigation levels (system → family → device → field → subfield) to find `DIAG:DCCT[MAIN]:CURRENT:RB` from 1,050 channels. Shows the recursive branching at each level.#

Database Format (v0.9.4+)

Hierarchical databases use a flexible schema that lets you define any hierarchy structure to match your control system. See the Database Format tab below for schema details and Building Your Own Database for a step-by-step guide.

How It Works:

Pipeline Stages

The hierarchical pipeline navigates through your control system’s structure using a recursive multi-level approach.

Stage 1: Query Splitting

Identical to the in-context pipeline’s query splitting stage, complex queries are decomposed into atomic sub-queries. Each atomic query then navigates the hierarchy independently.

Stage 2: Recursive Hierarchical Navigation

The pipeline navigates through five hierarchy levels in order: system → family → device → field → subfield. At each level, the LLM selects relevant options based on the query and previous selections.

Recursive branching is the key feature that makes this scalable:

When multiple options are selected at system, family, or field levels, the pipeline branches into parallel exploration paths
Each branch continues navigating independently through the remaining levels
The device level is special: multiple devices don’t cause branching because devices within a family are structurally identical

Example navigation flow:

Query: “What’s the beam current?”

Level: system → Available: [MAGNETS, VACUUM, RF, DIAGNOSTICS] → Selected: [DIAG]
Level: family → Available: [DCCT, BPM, EMIT, TUNE] → Selected: [DCCT]
Level: device → Available: [MAIN] → Selected: [MAIN]
Level: field → Available: [CURRENT, STATUS] → Selected: [CURRENT]
Level: subfield → Available: [SP, RB] → Selected: [RB]

Result: DIAG:DCCT[MAIN]:CURRENT:RB

If the query had matched multiple families at level 2, the pipeline would branch—exploring each family path independently and combining all results.

Stage 3: Channel Assembly & Validation

Once navigation completes, the pipeline:

Builds complete channel names from all navigation paths
Validates each channel exists in the database
Filters out any invalid channels (defensive check)
Returns the validated channel list

The hierarchical approach trades speed for scalability: navigation takes multiple LLM calls (one per level), but it can handle massive channel databases that wouldn’t fit in any LLM context window.

Database Format

Nested Hierarchy Structure:

The hierarchical database organizes channels by physical system structure with rich domain context at each level:

{
  "_comment": "Accelerator Control System - Hierarchical Channel Database",
  "hierarchy": {
    "levels": [
      {"name": "system", "type": "tree"},
      {"name": "family", "type": "tree"},
      {"name": "device", "type": "instances"},
      {"name": "field", "type": "tree"},
      {"name": "subfield", "type": "tree"}
    ],
    "naming_pattern": "{system}:{family}[{device}]:{field}:{subfield}"
  },
  "tree": {
    "MAG": {
      "_description": "Magnet System: Controls beam trajectory and focusing. Includes dipoles, quadrupoles, sextupoles, and correctors.",
      "QF": {
        "_description": "Focusing Quadrupoles: Positive gradient magnets. Focus horizontal, defocus vertical. Part of tune correction system.",
        "DEVICE": {
          "_expansion": {
            "_type": "range",
            "_pattern": "QF{:02d}",
            "_range": [1, 16]
          },
          "CURRENT": {
            "_description": "Excitation Current (Amperes): Current through coil windings. Proportional to field gradient.",
            "SP": {"_description": "Setpoint (read-write): Commanded current"},
            "RB": {"_description": "Readback (read-only): Measured current"}
          },
          "STATUS": {
            "_description": "Operational status indicators",
            "READY": {"_description": "Ready (read-only): Power supply ready"},
            "ON": {"_description": "On (read-only): Power supply energized"}
          }
        }
      }
    },
    "DIAG": {
      "_description": "Diagnostic System: Beam instrumentation and measurement devices",
      "DCCT": {
        "_description": "DC Current Transformers: Non-invasive beam current measurement",
        "DEVICE": {
          "_expansion": {
            "_type": "list",
            "_instances": ["MAIN"]
          },
          "CURRENT": {
            "RB": {"_description": "Readback (read-only): Measured beam current in mA"}
          }
        }
      }
    }
  }
}

Key features:

Clean schema: Single hierarchy section combines level definitions and naming pattern with built-in validation
Flexible structure: Each level specifies its name and type (tree for semantic categories, instances for numbered/patterned expansions)
Deep descriptions: Rich domain knowledge at every level guides LLM navigation
Instance expansion: Define device families once (e.g., QF01-QF16) using _expansion with ranges or lists
Physical organization: Hierarchy mirrors actual control system structure
Automatic validation: System ensures naming pattern references match level names, catching errors at load time

Result example: MAG:QF[QF03]:CURRENT:RB (Magnet system → QF family → device QF03 → CURRENT field → RB subfield)

Building Your Database

Manual JSON Creation: A Structured Approach

Unlike the in-context pipeline (which has automated CSV-to-JSON builders), hierarchical databases require manual JSON creation. This reflects their purpose: representing well-organized control systems with existing hierarchical structures.

When to Use This Workflow:

Your control system has a clear hierarchical structure (systems → families → devices → fields)
You have > 1,000 channels (hierarchical scales better than in-context)
Your naming convention already follows a pattern (e.g., SYSTEM:FAMILY[DEVICE]:FIELD:SUBFIELD)
You value auditability and transparent navigation logic

Step 1: Understand the Schema

The hierarchical database format in OSPREY uses a clean, flexible schema with two top-level keys:

{
  "hierarchy": {
    "levels": [
      {"name": "system", "type": "tree"},
      {"name": "family", "type": "tree"},
      {"name": "device", "type": "instances"},
      {"name": "field", "type": "tree"},
      {"name": "subfield", "type": "tree"}
    ],
    "naming_pattern": "{system}:{family}[{device}]:{field}:{subfield}"
  },
  "tree": { /* nested structure */ }
}

hierarchy: Configuration combining level definitions and naming pattern. This section includes:

levels: Ordered array defining each hierarchy level. Each level specifies:
- name: Level identifier used in navigation and naming pattern
- type: Either "tree" (navigate through named semantic categories like MAG, VAC, RF) or "instances" (expand numbered/patterned instances like QF01, QF02 that share the same structure)
Define as many or as few levels as your system needs—three levels for simple systems, five for typical accelerators, ten or more for complex facilities. The system validates that all level names appear exactly once in the naming pattern.
naming_pattern: Template for assembling complete channel names from navigation selections. Uses Python format string syntax with level names as placeholders (e.g., {system}:{device}:{field}). Must reference all and only the level names defined in the levels array.

tree: The nested hierarchy structure with descriptions at every level (details below).

Step 2: Build Your Hierarchy Tree

The tree follows a nested structure where each level contains:

System level (root): Top-level systems with _description fields

"tree": {
  "MAG": {
    "_description": "Magnet System (MAG): Controls beam trajectory and focusing...",
    /* families go here */
  },
  "VAC": {
    "_description": "Vacuum System (VAC): Maintains ultra-high vacuum...",
    /* families go here */
  }
}

Family level: Device families within each system

"QF": {
  "_description": "Focusing Quadrupoles (QF): Positive gradient magnets...",
  "DEVICE": {
    "_expansion": { /* expansion definition */ },
    /* fields go here as direct children */
  }
}

Device level: Container with _expansion definition specifying instances

"DEVICE": {
  "_expansion": {
    "_type": "range",
    "_pattern": "QF{:02d}",
    "_range": [1, 16]
  },
  /* fields defined here */
}

This generates QF01, QF02, …, QF16 automatically. For explicit lists:

"DEVICE": {
  "_expansion": {
    "_type": "list",
    "_instances": ["MAIN", "BACKUP"]
  },
  /* fields defined here */
}

Field level: Physical quantities or subsystems (as direct children of DEVICE)

"DEVICE": {
  "_expansion": { /* ... */ },
  "CURRENT": {
    "_description": "Excitation Current (Amperes): Current through coil windings...",
    "SP": {"_description": "Setpoint (read-write): Commanded current"},
    "RB": {"_description": "Readback (read-only): Measured current"}
  },
  "STATUS": {
    "_description": "Operational status indicators",
    "READY": {"_description": "Ready (read-only): Power supply ready"},
    "ON": {"_description": "On (read-only): Power supply energized"}
  }
}

Subfield level: Specific measurements or control points (as direct children of each field)

"CURRENT": {
  "_description": "Excitation Current (Amperes)...",
  "SP": {"_description": "Setpoint (read-write): Commanded current"},
  "RB": {"_description": "Readback (read-only): Measured current"},
  "GOLDEN": {"_description": "Golden reference value for optimal operation"}
}

Step 3: Write Rich Descriptions

Descriptions are critical for LLM navigation. Good descriptions include:

Full name expansion: “QF” → “Focusing Quadrupoles (QF)”
Physical function: “Focus horizontal, defocus vertical”
Domain context: “Part of tune correction system”
Units and ranges: “(Amperes)”, “Typically 0-200A”
Access mode: “(read-write)” or “(read-only)”

Example of excellent description depth:

"DEVICE": {
  "_expansion": {
    "_type": "range",
    "_pattern": "QF{:02d}",
    "_range": [1, 16]
  },
  "CURRENT": {
    "_description": "Quadrupole Excitation Current (Amperes): Current through QF coil windings. Proportional to positive field gradient. Typically 0-200A. Adjusted for tune correction and beam optics optimization.",
    "SP": {
      "_description": "Setpoint (read-write): Commanded focusing current for tune correction."
    },
    "RB": {
      "_description": "Readback (read-only): Measured focusing current from DCCT sensor."
    }
  }
}

The more context you provide, the better the LLM can match user queries to the correct path.

Step 4: Validate Your Database

The validation tool auto-detects your pipeline type and validates accordingly:

# From my-control-assistant directory
python src/my_control_assistant/data/tools/validate_database.py

# Or validate a specific file
python src/my_control_assistant/data/tools/validate_database.py --database path/to/hierarchical.json

For hierarchical databases, validation checks:

✅ JSON Structure: Valid syntax, required top-level keys (hierarchy, tree)
✅ Schema Validation: Naming pattern references exactly match level names (prevents typos and out-of-sync errors)
✅ Level Configuration: All levels have valid types (tree or instances), properly configured
✅ Hierarchy Consistency: All levels properly nested, instance expansion definitions valid
✅ Database Loading: Can be successfully loaded by HierarchicalChannelDatabase class
✅ Channel Expansion: Tree structure expands correctly to generate channel names

If you encounter issues, the validator will report specific problems with line numbers or key paths to help you debug.

Step 5: Preview Database Presentation

See how your database appears to the LLM during navigation:

# From my-control-assistant directory
python src/my_control_assistant/data/tools/preview_database.py

# Show full tree (not just summary)
python src/my_control_assistant/data/tools/preview_database.py --full

This displays:

Tree structure with all levels visible
Rich descriptions at each level
Device instance counts and patterns
Total channel counts by system

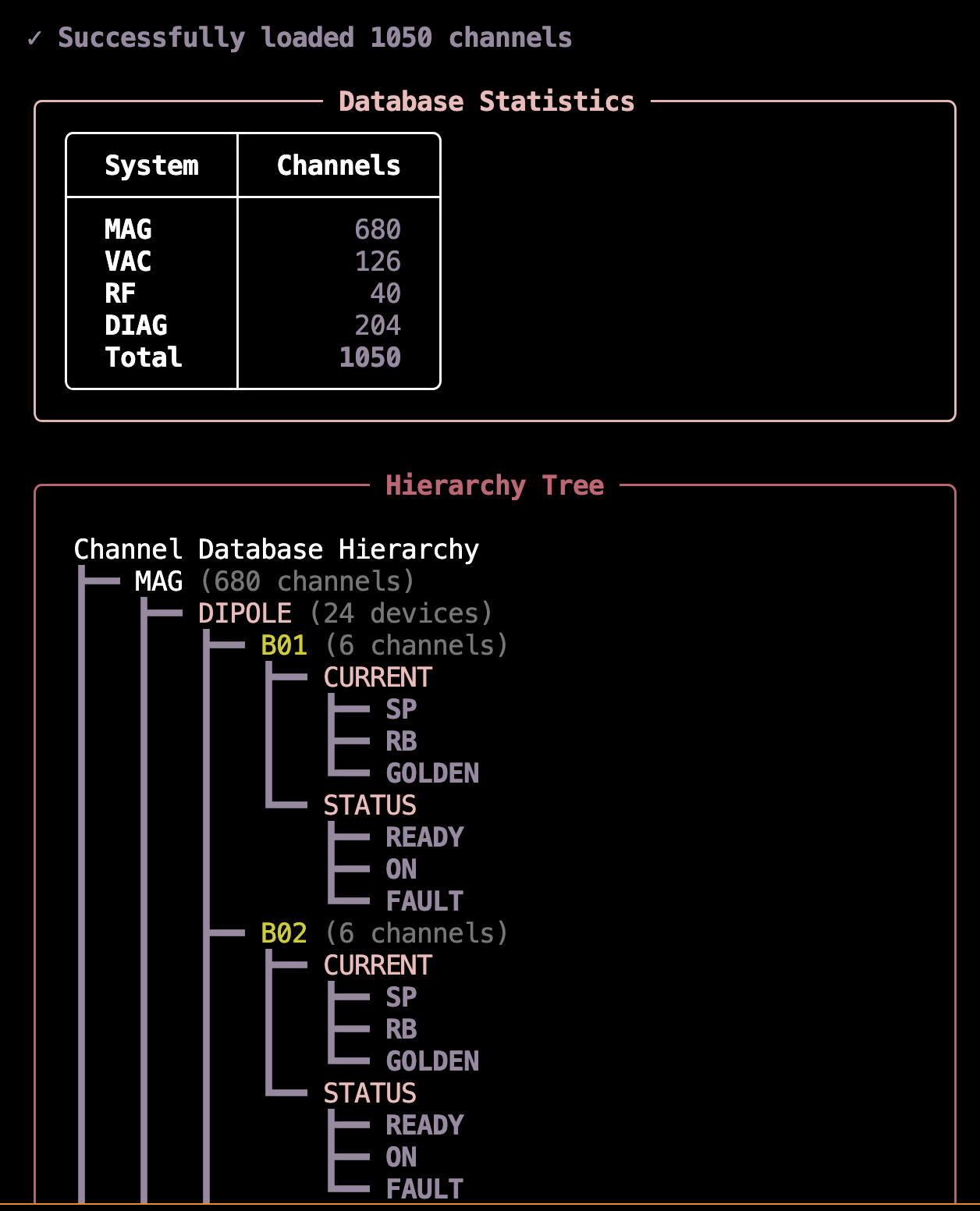

Preview Output Example:

Best Practices:

Mirror Physical Structure: Organize the hierarchy to match your actual control system architecture
Consistent Naming: Use the same naming conventions throughout (e.g., always use “Setpoint” not “Set” or “SP”)
Rich Context: Write descriptions as if explaining to a new operator - assume no prior knowledge
Device Patterns: Use range notation for device families (more compact than explicit lists)
Domain Vocabulary: Include common synonyms in descriptions (e.g., “current” and “amperes”)
Test Incrementally: Build one system at a time, test it, then add the next
Validate Early: Run validation after each system to catch issues before they compound

Test Your Database

Interactive Testing & Benchmarking

Once your database is built and validated, test its functionality with the CLI for rapid iteration, then benchmark it for statistical evaluation.

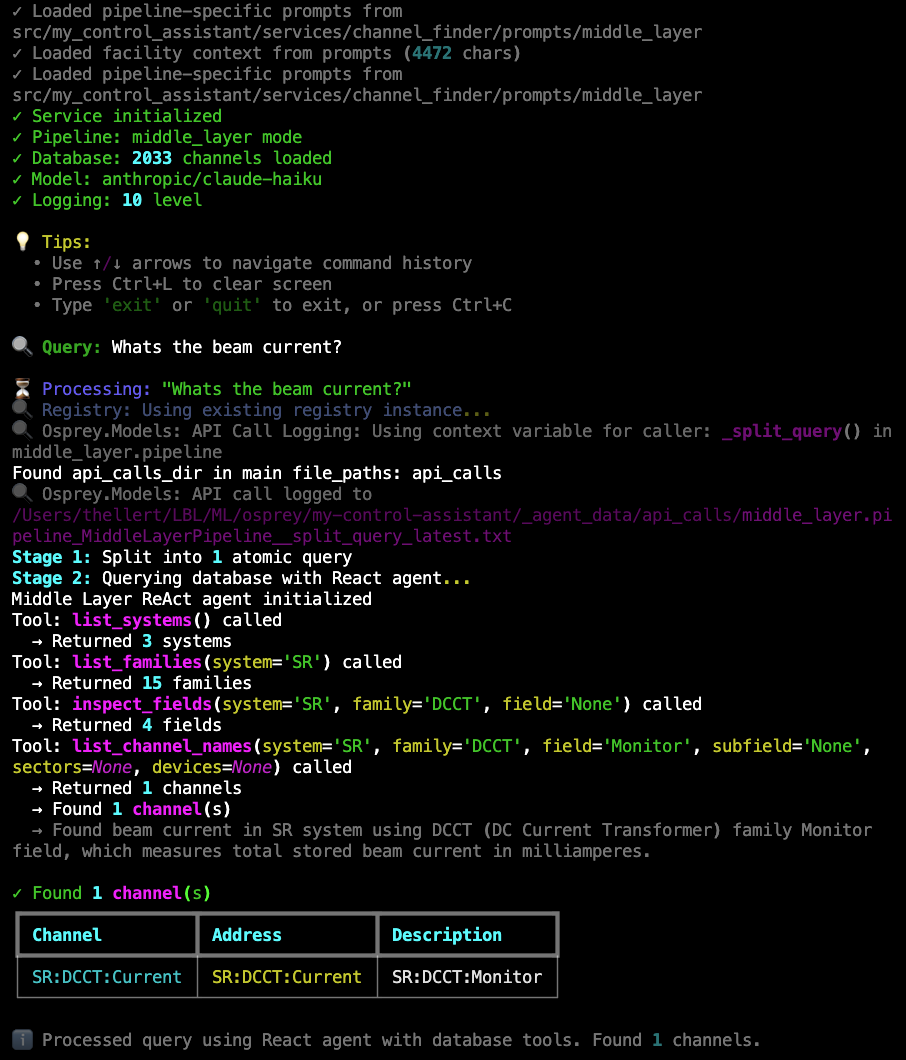

Interactive CLI: Rapid Development Testing

Query your database interactively without running the full agent:

# From my-control-assistant directory
python src/my_control_assistant/services/channel_finder/cli.py

This launches an interactive terminal where you can:

Test queries against your channel database in real-time
Watch the pipeline stages execute with live progress updates
Verify which channels are matched and why
Measure query execution time to optimize performance
Iterate on your database and see results immediately

Example queries to try:

Single channel: “What’s the beam current?” → DIAG:DCCT[MAIN]:CURRENT:RB
Device range: “All focusing quadrupoles” → 48 channels (QF01-QF16 × 3 subfields)
Field wildcards: “Vacuum pressure in sector 1” → VAC:ION-PUMP[SR01]:PRESSURE:RB
Multi-level branching: “RF cavity voltage” → 6 channels (C1+C2 × 3 subfields)

The CLI shows navigation decisions at each level, making it easy to spot issues with descriptions or hierarchy structure.

Benchmarking: Critical Validation Before Production

Benchmark datasets are essential for validating your channel finder before deployment. A benchmark that performs well during development with developer-created queries may completely fail in production when users with different mental models start querying the system.

Once your database is ready and you have a diverse benchmark dataset from domain experts, run systematic benchmarks to measure accuracy:

# Run all benchmark queries
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py

# Test specific queries (useful during development)
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py --queries 0,1

# Compare model performance
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py --model anthropic/claude-sonnet

Benchmark Capabilities:

Statistical metrics: Precision (accuracy of matches), recall (completeness), and F1 scores (harmonic mean)
Success categorization: Perfect matches (100% correct), partial matches (some correct), and failures
Parallel execution: Runs 5 queries concurrently by default to speed up large benchmark sets
Incremental saves: Results are saved after each query, so interruptions don’t lose progress
Consistency tracking: Measures whether repeated queries produce the same results

Example benchmark results:

╭─────────────────────────── 📊 Overall Metrics ───────────────────────────╮
│   Queries Evaluated    47/47                                             │
│   Precision            1.000                                             │
│   Recall               1.000                                             │
│   F1 Score             1.000                                             │
╰──────────────────────────────────────────────────────────────────────────╯

╭─────────────────────────── Success Breakdown ────────────────────────────╮
│   ✓ Perfect Matches    47    100.0%                                      │
│   ⚠ Partial Matches     0    0.0%                                        │
│   ✗ No Matches          0    0.0%                                        │
╰──────────────────────────────────────────────────────────────────────────╯

╭────────────────────────────── Performance ───────────────────────────────╮
│   Avg Consistency    1.000                                               │
│   Avg Time/Query     5.605s                                              │
╰──────────────────────────────────────────────────────────────────────────╯

Configuring Benchmarks:

The benchmark system is configured in config.yml with both global settings and pipeline-specific datasets:

channel_finder:
  # Active pipeline determines which benchmark dataset is used by default
  pipeline_mode: hierarchical

  pipelines:
    hierarchical:
      database:
        type: hierarchical
        path: src/my_control_assistant/data/channel_databases/hierarchical.json

   # Benchmark dataset for this pipeline
   benchmark:
     dataset_path: src/my_control_assistant/data/benchmarks/datasets/hierarchical_benchmark.json
     # Hierarchical pipeline benchmark with multi-level channel structure (47 queries)

# Global benchmarking configuration
benchmark:
  # Execution settings
  execution:
    runs_per_query: 1                 # Number of times to run each query
    delay_between_runs: 0             # Delay in seconds between runs
    continue_on_error: true           # Continue even if some queries fail
    max_concurrent_queries: 5         # Maximum parallel queries
    query_selection: all              # "all" or specific queries like [0,1,2]

  # Output settings
  output:
    results_dir: src/my_control_assistant/data/benchmarks/results
    save_incremental: true            # Save results after each query
    include_detailed_metrics: true    # Include detailed timing/cost metrics

  # Evaluation thresholds
  evaluation:
    exact_match_weight: 1.0
    partial_match_weight: 0.5

You can override the dataset and other settings via CLI:

# Use a different dataset
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py \
   --dataset src/my_control_assistant/data/benchmarks/datasets/custom_dataset.json

# Run specific queries
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py --queries 0,1,5,10

# Show detailed logs
python src/my_control_assistant/services/channel_finder/benchmarks/cli.py --verbose

When to use these tools:

During development: Use the CLI to rapidly test queries as you build your database
Before deployment: Run full benchmarks with domain expert queries to validate accuracy meets production requirements (aim for >90% F1 score)
Model selection: Compare different LLM models to balance cost, speed, and accuracy for your specific use case
Continuous validation: Re-run benchmarks after database updates to ensure no regression in accuracy

Best Practices:

Rich Descriptions: Write detailed, domain-specific descriptions at every hierarchy level
Consistent Naming: Use consistent patterns throughout the hierarchy
Iterative Testing: Test incrementally as you build each system
Domain Expert Queries: Gather test queries from multiple operators and experts
Regular Benchmarking: Re-run benchmarks after database changes to catch regressions
CLI First: Use interactive CLI for rapid iteration before running full benchmarks
Document Patterns: Keep notes on navigation patterns that work well for your facility

2.1: OSPREY Framework Integration#

Capability Pattern Update (v0.9.2+)

This tutorial uses the new instance method pattern introduced in v0.9.2+. If you have existing capabilities from v0.9.1 or earlier using static methods, see the Migration Guide: Instance Methods for a complete upgrade guide.

New features in v0.9.2+:

Helper methods: self.get_required_contexts(), self.store_output_context()
Automatic state injection via @capability_node decorator
Simplified code with 50-60% less boilerplate

Easiest migration path: After upgrading to v0.9.2+, recreate the tutorial using osprey init to generate fresh templates with the new pattern. Then cherry-pick your custom business logic from the old capabilities into the new ones. This is often faster than manual migration and ensures you get all the new patterns correctly.

The channel finder integrates into OSPREY as a capability—a reusable component that the agent orchestrator can plan and execute. The capability acts as a thin orchestration layer that connects the framework to the service layer, while all channel finding logic lives in services/channel_finder/. This separation makes the service independently testable via CLI and benchmarks before agent integration. The template provides a complete implementation in src/my_control_assistant/capabilities/channel_finding.py.

Capability Architecture:

@capability_node
class ChannelFindingCapability(BaseCapability):
    name = "channel_finding"
    description = "Find control system channel addresses based on descriptions"
    provides = ["CHANNEL_ADDRESSES"]  # What this capability produces
    requires = []                      # What this capability needs (none)

How the Agent Uses It:

Task Classification: When the user asks about channels (e.g., “What’s the beam current?”), the classifier identifies this requires channel finding
- Customization point: Modify _create_classifier_guide() to change classification behavior with few-shot examples
- See: Classification and Routing for classification mechanics
- Example: Classifier Guide in Hello World tutorial
Planning: The orchestrator creates a plan that includes a channel_finding step
- Customization point: Modify _create_orchestrator_guide() to influence when and how the capability is planned
- See: Orchestrator Planning for orchestration logic
- Example: Orchestrator Guide in Hello World tutorial
Execution: The capability calls the service layer (ChannelFinderService) to find matching channels
Context Storage: Results are stored in the agent state as CHANNEL_ADDRESSES context
Downstream Use: Other capabilities (like channel_value_retrieval) consume the CHANNEL_ADDRESSES context

Error Handling:

The capability classifies errors for appropriate agent responses:

ChannelNotFoundError: Triggers re-planning with suggestions to refine the query
ChannelFinderServiceError: Critical error, aborts execution with diagnostic information

Configuration:

The capability reads config.yml to determine which pipeline to use (in_context or hierarchical). No code changes needed—just update the config:

channel_finder:
  pipeline_mode: in_context  # or "hierarchical"

Step 4: The Service Layer Pattern#

A key architectural pattern: separate business logic from framework orchestration. This service layer pattern provides several critical benefits for production systems:

Clean Boundaries: Clear separation of concerns ensures that the service layer contains pure business logic and algorithms, while the capability layer handles state management and orchestration. No framework coupling exists in service code, making it easier to maintain and evolve.

Independent Testing: Service logic can be tested without framework overhead. For example, you can unit test the service directly:

service = ChannelFinderService()
result = await service.find_channels("beam current")
assert "SR:CURRENT:RB" in result.channels

Reusability: The same service can be used in multiple contexts—Osprey capabilities, standalone CLI tools, MCP servers, and web APIs. Your business logic stays portable across deployment scenarios. For example:

@mcp.tool()
async def find_channels(query: str):
    service = ChannelFinderService()
    return await service.find_channels(query)

Architecture Overview:

# ===== SERVICE LAYER: src/my_control_assistant/services/channel_finder/ =====
# Pure Python, no framework dependencies

class ChannelFinderService:
    """Standalone service for channel finding."""

    def __init__(self):
        # Load database based on config
        self.pipeline = self._load_pipeline_from_config()

    async def find_channels(self, query: str) -> ChannelFinderResult:
        """
        Find channels matching natural language query.

        This is pure business logic - no AgentState, no StateManager.
        """
        result = await self.pipeline.process_query(query)

        return ChannelFinderResult(
            query=query,
            channels=[ChannelInfo(address=ch) for ch in result.channels],
            total_channels=len(result.channels),
            processing_notes=result.notes
        )

# ===== CAPABILITY LAYER: src/my_control_assistant/capabilities/channel_finding.py =====
# Framework integration only

@capability_node
class ChannelFindingCapability(BaseCapability):
    """Thin wrapper connecting service to framework."""

    name = "channel_finding"
    provides = ["CHANNEL_ADDRESSES"]

    async def execute(self) -> Dict[str, Any]:
        search_query = self.get_task_objective()

        # Delegate to service layer
        service = ChannelFinderService()
        result = await service.find_channels(search_query)

        # Convert to framework context
        context = ChannelAddressesContext(
            channels=[ch.address for ch in result.channels],
            description=result.processing_notes
        )

        # Store in framework state
        return self.store_output_context(context)

Part 2: Building Your Channel Finder#

Step 3: Semantic Channel Finding Pipelines#

2.1: OSPREY Framework Integration#

Step 4: The Service Layer Pattern#

Navigation#
